El robot Turin TR30-1840P, de la gama industrial de 4 ejes, ofrece una capacidad de carga de 30 kg y un alcance de 1.840 mm. Diseñado para tareas de paletizado, manipulación y carga pesada, combina alta velocidad, precisión y fiabilidad, optimizando procesos logísticos y de producción automatizada.

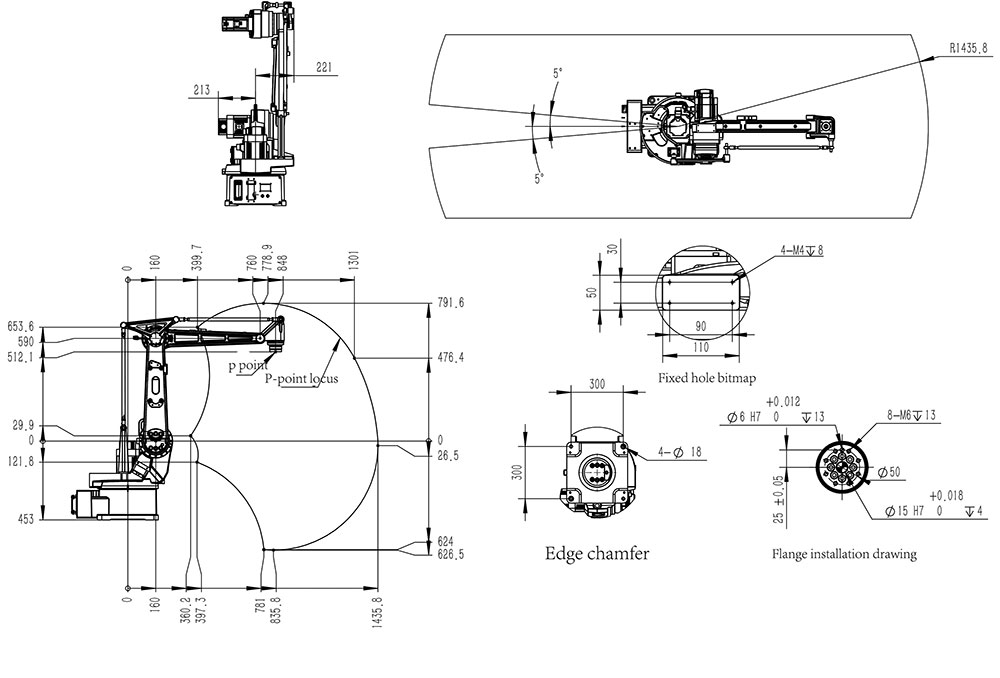

TR12-1430P
Categoría: Robot with Four AxesModelo: TR12-1430PCarga útil: 12 KgAlcance: 1435 mm
| TR12-1430P | |||
| Rated Payload | 12kg | ||
| Arm Reach | 1435mm | ||
| Position Repeatability | ±0.08mm | ||
| Protection Level | IP54 | ||
| Structural Form | Vertical Multi-jointed Series Structure | ||
| DOF | 4 | ||
| Max Speed | J1 | 210°/s | |
| J2 | 205°/s | ||
| J3 | 185°/s | ||
| J4 | 500°/s | ||
| Max Operation Area | J1 | ±175° | |
| J2 | -35°~85° | ||
| J3 | -90°~70° | ||
| J4 | ±360° | ||
| Maximum Allowable Inertia of the Wrist | J4 | 1.3kgm² | |
| – | – | ||
| – | – | ||
| Rated Power | 2.5kw | ||
| User Wiring | RVV17*0.2 | ||
| User Piping | 2*Φ8mm | ||
| User Distribution | single-phase AC220V-10%~+10% | ||
| Applicable Environment | Temperature | 0~45°C | |
| Humidity | 10%~80%RH | ||
| Max Temperature Gradient | 1.5°C/min | ||
| Body Weight |
175kg |
||
| Control Cabinet | TRC5-B06/TRC3-D06 | ||
| Installation Method | Floor-standing | ||
