El robot SCARA TR03-500S/TW de Turin ofrece una carga útil de 3 kg (máximo 5 kg) y un alcance de 500/600 mm, ideal para tareas de manipulación de alta velocidad y precisión en entornos industriales compactos. Con repetibilidad de ±0,01 mm, velocidad máxima de 7.478 mm/s y tiempo de ciclo de 0,4 s, este modelo se integra fácilmente en líneas automatizadas de electrónica, ensamblaje fino o alimentación de máquinas
TR03-500S/TW
Categoría: Scara RobotModelo: TR03-500S/TWCarga útil: 3 KgAlcance: 500-600 mm
| TR03-500S/TW | |||
| Payload | Rated | 3kg | |
| Max | 5kg | ||
| Arm Reach | 1st + 2nd Robotic Arm | 500/600mm | |
| 1st Robotic Arm | 200/300mm | ||
| 2nd Robotic Arm | 300mm | ||
| Position Repeatability | J1/J2 | ±0.01mm | |
| J3 | ±0.01mm | ||
| J4 | ±0.01° | ||
| Protection Level | IP40 | ||
| Max Speed | J1/J2 | 7693/8478mm/s | |
| J3 | 1000mm/s | ||
| J4 | 3500°/s | ||
| Max Operation Area | J1 | ±130° | |
| J2 | ±145° | ||
| J3 | 200mm | ||
| J4 | ±360° | ||
| Allowable Moment of Inertia of R Axis | Rated |
0.01kg·m² |
|
| Max | 0.12kg·m² | ||
| Pressing Force of J3 | 150N | ||
| Noise Level | Laeq≤85dB(A) | ||
| Takt Time | 0.4s | ||
| Rated Power | 0.8kw | ||
| User Wiring | RVV10*0.2 | ||
| User Piping | 3*Φ6mm | ||
| User Distribution | single-phase AC220V-10%~+10% | ||
| Applicable Environment | Temperature | 0~45°C | |
| Humidity | 10%~80%RH | ||
| Body Weight |
20/25kg |
||
| Control Cabinet | TRC4-A03 | ||

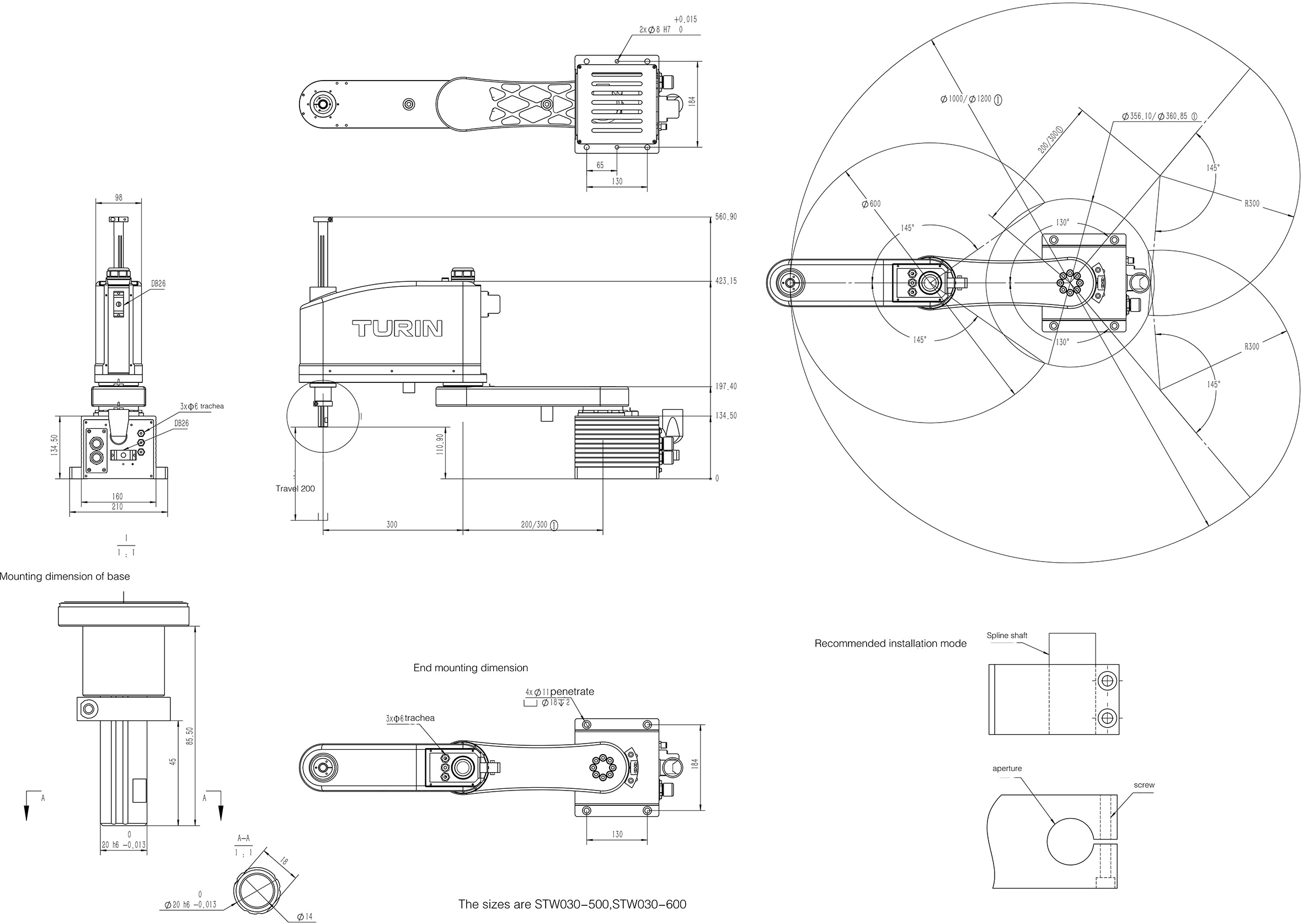

| Mounting Holes | 184*130mm(4-Φ11mm) | ||
| Installation Method | Countertop Installation | ||
